Tsev / Khoom / Bolts / Hexagon Socket Head Cap Screws / Ntsiab lus

Khoom

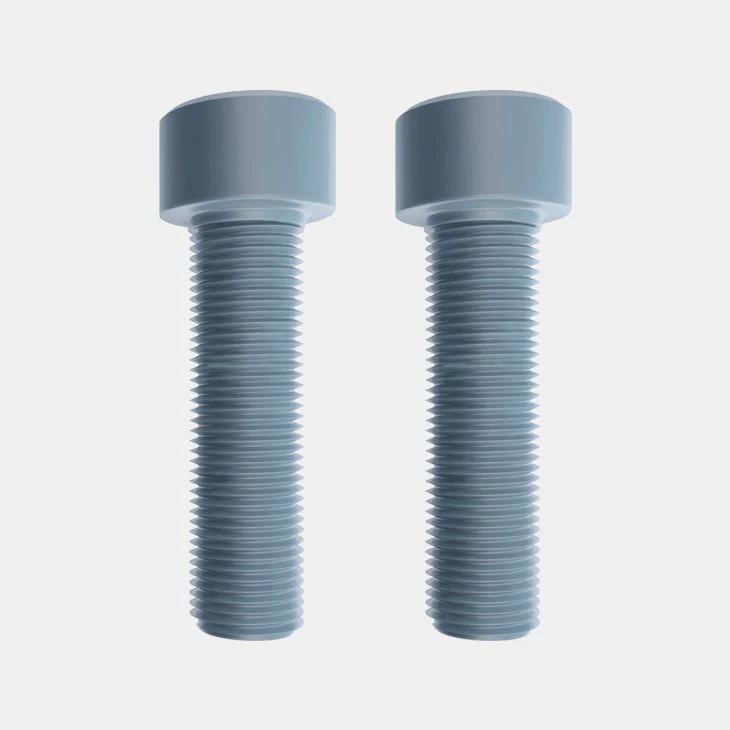

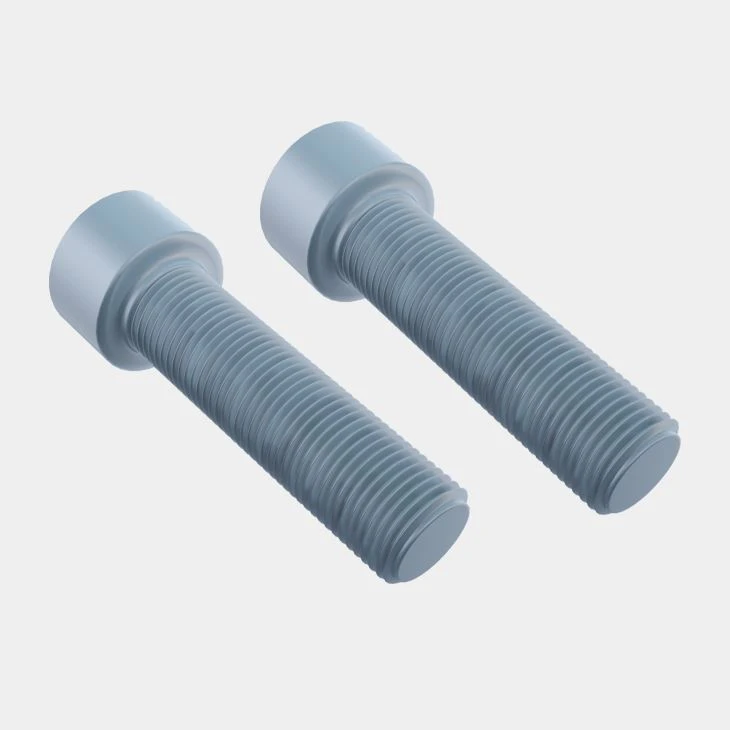

Dub Allen Lub Taub Hau Bolts

Qauv: JIS B 1176
Xov Hom: Coarse Xov, Tag Nrho Xov
Khoom siv: Dub Allen taub hau Bolts
Kuj Lub Npe: Hexagon Socket Head Cap Screws
Khoom siv: Carbon Steel
Chav Kawm: 4.6,4.8,5.6,5.8,6.8,8.8,9.8,10.9,12.9
Txoj kab uas hla: M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M48, (M52)
Nto: Plain, Dub, Zinc Plated, Kub Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electrolate, Nickel Plated
Lub taub hau hom: Cap taub hau
Tsav hom: Internal Hex
Alternative Standard: ISO 4762, DIN 912, ASME B 18.3
MOQ: 1000kgs
Lub Sijhawm Lead: 30-60 hnub

Xa kev nug

Khoom Taw qhia

Black Allen Head Bolts-AYA

Raws li lub ntiaj teb kev lag luam ntawm cov kev daws teeb meem fastening, AYA cov txheej txheem senvice kuj yog ze rau cov neeg siv khoom raws li AYA cov khoom. Los ntawm kev piav qhia txog kev xav tau kev pab cuam tom qab, AYA yuav sai sai thiab tsis muaj kev siv dag zog los pab cov neeg siv khoom daws cov teeb meem ceev uas tshwm sim, tshem tawm cov kev txhawj xeeb ntawm cov neeg siv khoom.

Product Description

Khoom npe	Dub Allen Lub Taub Hau Bolts
Kuj hu ua	Hexagon Socket Head Cap Screws
Khoom siv	Carbon Steel
Txuj	SIB 1176
Chav Kawm Khoom	4.6,4.8,5.6,5.8,6.8,8.8,9.8,10.9,12.9
Txoj kab uas hla	M1.6,M2,M2.5,M3,M4,M5,M6,M8,M10,M12,(M14),M16,(M18),M20,(M22),M24,(M27),M30,(M33),M36,(M39),M42,(M45),M48,(M52)
Ua kom tiav	Plain, Dub, Zinc Plated, Kub Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electrolate, Nickel Plated
Hom Lub taub hau	Lub taub hau
Tsav hom	Internal Hex
Xov Hom	Coarse Xov, Tag Nrho Xov

Dimensions Rooj

Black Allen Head Bolts-2D

Xov Size d			M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)
P	Suab		0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
b	Ref.		15	16	17	18	20	22	24	28	32	36	40	44	48
dk	max	Rau cov taub hau dawb	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27
	max	Rau knurled taub hau	3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27	21.33	24.33	27.33
	min		2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.67
ds	max		1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
ds	min		1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73
k	max		1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
k	min		1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.57
s	Nominal Loj		1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14
	min		1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.032
	max	1 Kem	1.58	1.58	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.212
	max	2 Kem	1.545	1.545	2.045	2.56	3.08	4.095	5.095	6.095	8.115	10.115	12.142	14.142	14.142
t	min		0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9

Xov Size d			M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
P	Suab		2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
b	Ref.		52	56	60	66	72	78	84	90	96	102	108	116
dk	max	Rau cov taub hau dawb	30	33	36	40	45	50	54	58	63	68	72	78
	max	Rau knurled taub hau	30.33	33.39	36.39	40.39	45.39	50.39	54.46	58.46	63.46	68.46	72.46	78.46
	min		29.67	32.61	35.61	39.61	44.61	49.61	53.54	57.54	62.54	67.54	71.54	77.54
ds	max		20	22	24	27	30	33	36	39	42	45	48	52
ds	min		19.67	21.67	23.67	26.67	29.67	32.61	35.61	38.61	41.61	44.61	47.61	51.54
k	max		20	22	24	27	30	33	36	39	42	45	48	52
k	min		19.48	21.48	23.48	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26
s	Nominal Loj		17	17	19	19	22	24	27	27	32	32	36	36
	min		17.05	17.05	19.065	19.065	22.065	24.065	27.065	27.065	32.08	32.08	36.08	36.08
	max	1 Kem	17.23	17.23	19.275	19.275	19.275	24.275	27.275	27.275	32.33	32.33	36.33	36.33
	max	2 Kem	17.23	17.23	19.275	19.275	19.275	24.275	27.275	27.275	32.33	32.33	36.33	36.33
t	min		10	11	12	13.5	15.5	16.5	19	20	21	23	24	26

Khoom Paub meej

Black Allen Head Bolts-detail

Khoom zoo

Black Allen Head Bolts-advantages

Qhov zoo

1. Cov dub oxide Allen lub taub hau ntsia liaj qhov rooj tuaj yeem tiv thaiv kev tsis txhob muab cov hlua khi.

2. Nws yog qhov tsim nyog pheej yig piv rau ntau yam ntawm lwm yam vim nws cov txheej txheem pheej yig nto.

3. Cov oxide dub muab cov kev xaiv zoo nkauj tshiab rau kev tsim kho lossis tshuab.

4. Nws yog tsim los ntawm cov khoom lag luam zoo tshaj plaws uas coj tau lub neej ntev thiab cov nqi kho mob me ntsis.

5. AYA siv cov nyiaj tau los txhua xyoo ntawm 10 feem pua rau kev tshawb fawb thiab kev tsim cov khoom tshiab.

6. AYA tau tsim lub logistic tag nrho los muab cov khoom thoob ntiaj teb.

Kev soj ntsuam zoo

Black Allen Head Bolts-check

Txhua qhov txuas hauv kev tsim khoom yuav raug saib xyuas los ntawm cov neeg ua haujlwm tswj xyuas kom ntseeg tau tias cov khoom kawg ua tau raws li cov neeg xav tau.

Sophisticated xeem cov cuab yeej thiab kev paub txog kev tswj cov neeg ua haujlwm zoo tuaj yeem muab cov neeg siv khoom nrog cov ntaub ntawv soj ntsuam zoo dua.

Ntim & Thawv Loading

Black Allen Head Bolts-package

AYA cov khoom ntim tuaj yeem tsis tsuas yog muab kev tiv thaiv zoo rau cov khoom, tab sis kuj txhim kho kev zoo nkauj ntawm cov khoom.

AYA muab cov kev pabcuam sau npe.

Kev siv Scenarios

Black Allen Head Bolts-usage

Vim li cas thiaj xaiv AYA?

AYA-advantage

AYA muab cov kev pabcuam tshwjxeeb rau 1000 ntxiv rau cov tswvcuab los ntawm thoob plaws lub ntiaj teb txhua xyoo, nrog rau kev pabcuam kev pabcuam tshwjxeeb, koj tsuas yog yuav tsum nyem tus nas kom tau txais kev pabcuam tshwjxeeb thiab txaus siab rau cov kev pabcuam hauv qhov rooj.
