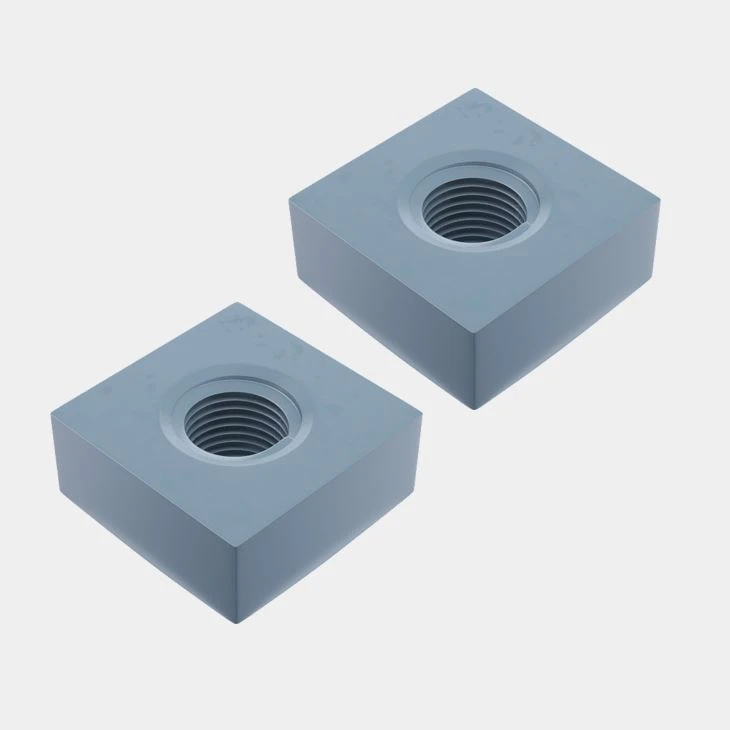

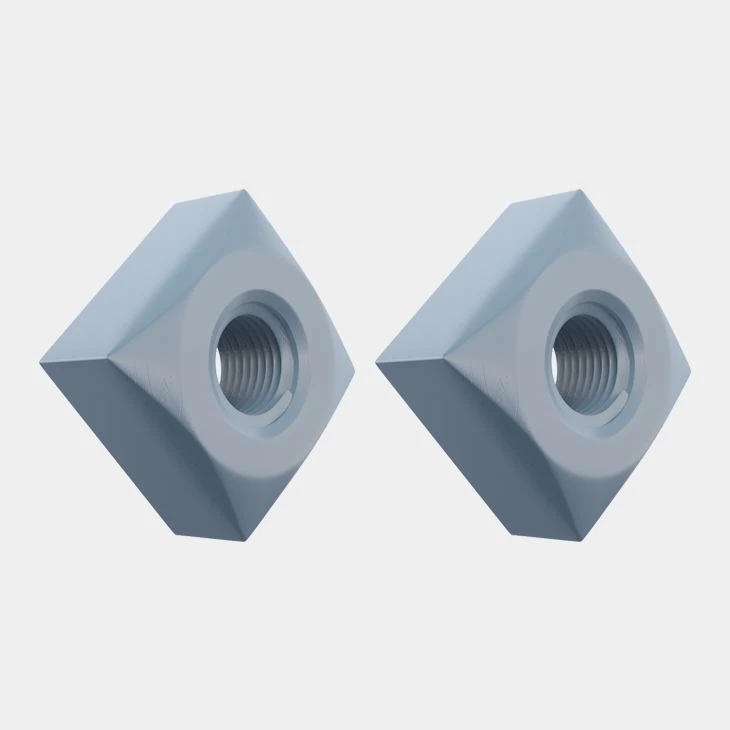

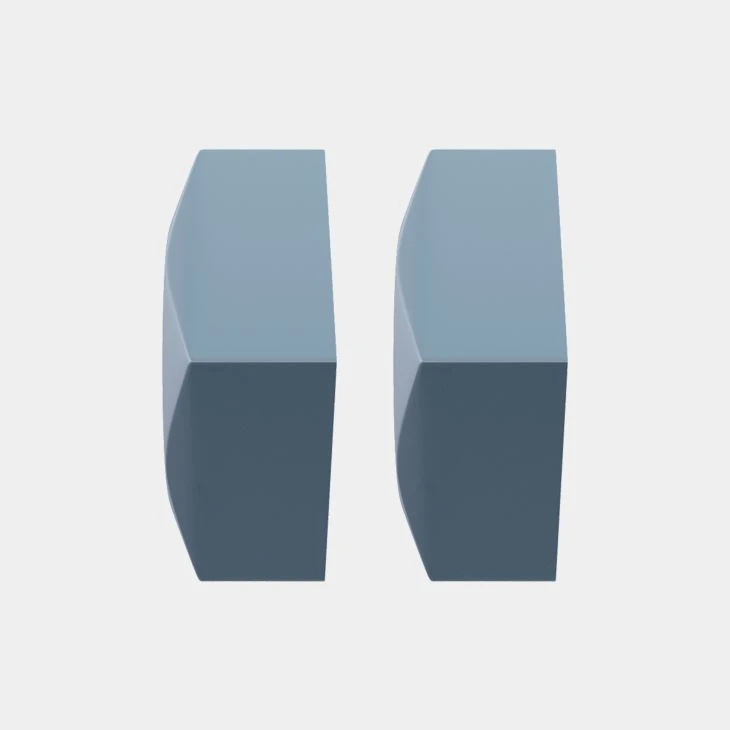

Square taub hau txiv ntseej
Txheem: DIN 557
Xov Hom: Coarse Xov
Khoom siv: Square taub hau txiv ntseej
Kuj Lub Npe: Square Nut DIN 557
Khoom siv: Hlau
Chav Kawm Khoom: 5
Loj: M5 / M6 / M8 / M10 SW16 / M10 / M12 SW18 / M12 / M16
Nto: Plain / Dub / Zinc Plated / Thick-Film Passivated (ZSML) / Zinc Flake, Nyiaj (ZFSHL) / Kub Dipped Galvanized / Organic / Geomet / Dacromet / Phosphating / Cadmium Electrolate / Nickel Plated
Tsav hom: Sab nraud Hex
Alternative Standard: UNI 5597
MOQ: 1000kgs
Lub Sijhawm Lead: 30-60 hnub
Khoom Taw qhia
Raws li lub ntiaj teb cov khoom lag luam ntawm cov kev daws teeb meem fastening, AYA cov txheej txheem senvice kuj yog ze rau cov neeg siv khoom raws li AYA cov khoom. Los ntawm kev piav qhia txog kev xav tau kev pab cuam tom qab, AYA yuav sai sai thiab tsis muaj kev siv dag zog los pab cov neeg siv khoom daws teeb meem uas tshwm sim, tshem tawm cov kev txhawj xeeb ntawm cov neeg siv khoom.
Product Description
Khoom npe | Square taub hau txiv ntseej |
Kuj hu ua | Square txiv ntseej DIN 557 |
Khoom siv | Hlau |
Txuj | TIAB SA 557 |
Alternative Standard | TIAB SA 5597 |
Chav Kawm Khoom | 5 |
Txoj kab uas hla | M5 / M6 / M8 / M10 SW16 / M10 / M12 SW18 / M12 / M16 |
Ua kom tiav | Plain / Dub / Zinc Plated / Thick-Film Passivated (ZSML) / Zinc Flake, Nyiaj (ZFSHL) / Kub Dipped Galvanized / Organic / Geomet / Dacromet / Phosphating / Cadmium Electrolate / Nickel Plated |
Tsav hom | Sab nraud Hex |
Xov Hom | Xov xwm |

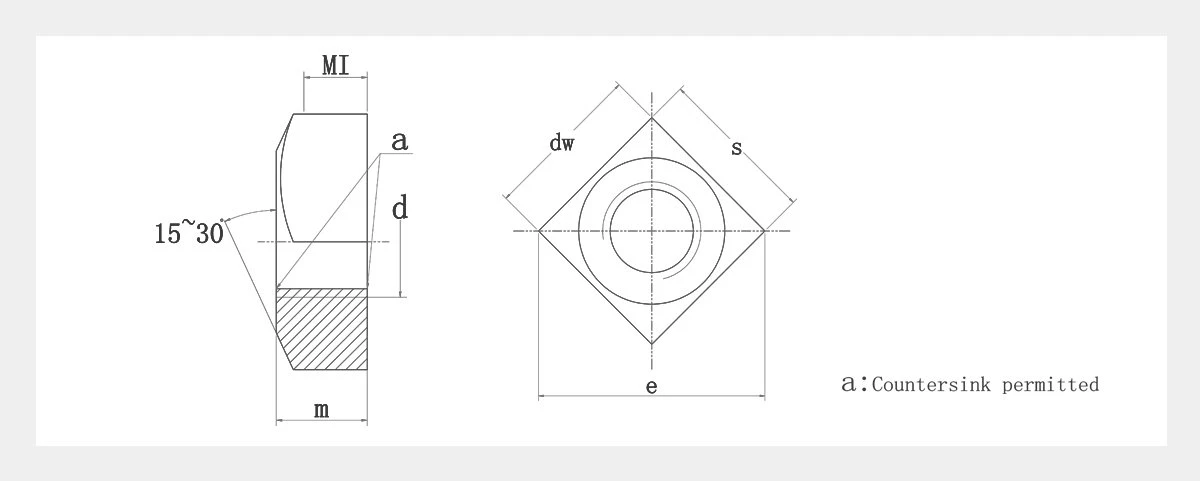

Dimensions Table
| Xov Size d | M5 | M6 | M8 | M10 SWB 16 | M10 | M12 SWB 18 | M12 | M16 | |
| P | Suab | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 1.75 | 1.75 | 2 |
| dw | min | 6.7 | 8.7 | 11.5 | 14.5 | 15.5 | 16.5 | 17.2 | 22 |
| e | max | 11.3 | 14.1 | 18.4 | 22.6 | 24 | 25.4 | 26.9 | 33.9 |
| min | 9.93 | 12.53 | 16.34 | 20.24 | 21.54 | 22.84 | 24.02 | 30.11 | |
| m | max =nominal loj | 4 | 5 | 6.5 | 8 | 8 | 10 | 10 | l3 |
| min | 3.52 | 4.52 | 5.92 | 7.42 | 7.42 | 9.42 | 9.42 | 12.3 | |
| m1 | min | 2.5 | 3.2 | 4.1 | 5.2 | 5.2 | 6.6 | 6.6 | 8.6 |
| s | max =nominal loj | 8 | 10 | 13 | 16 | 17 | 18 | 19 | 24 |
| min | 7.64 | 9.64 | 12.57 | 15.57 | 16.57 | 17.57 | 18.48 | 23.16 | |
| rau 1000 units ≈ kg | 1.31 | 2.77 | 5.5 | 10.7 | 13 | 16.3 | 19.1 | 38.2 | |

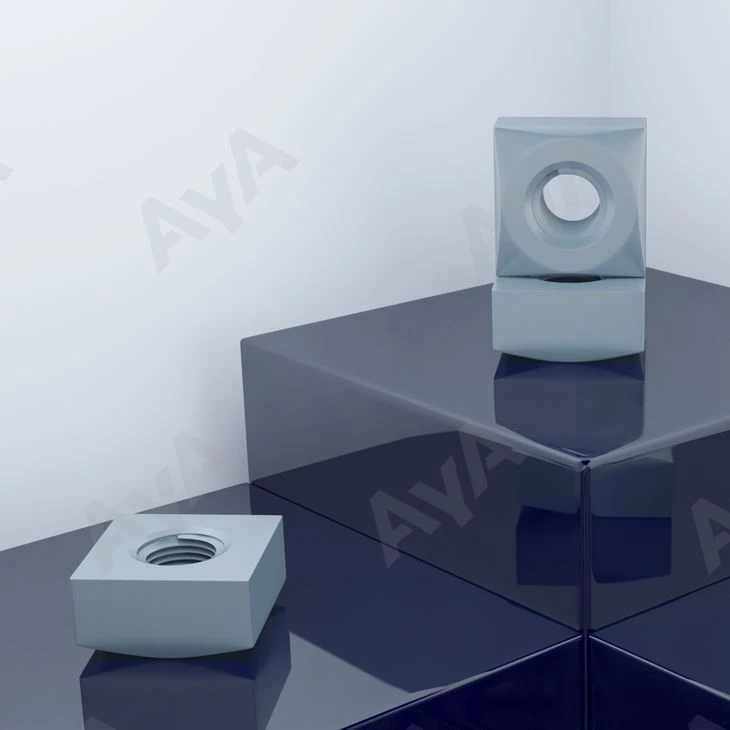

Khoom Paub meej
Khoom zoo
Qhov zoo ntawm DIN 557 Square Txiv Ntoo
1. Vim hais tias ntawm plaub-sided duab, square taub hau txiv ntseej thiab square taub hau bolts yog yooj yim heev rau zawm.
2. Thaum ntsuas txoj hauj lwm ntawm cov txiv ntoo, cov duab plaub kuj ua raws li qhov ntsuas ceev.
3. Cov neeg ua haujlwm tuaj yeem nruj thiab xoob lub txiv ntoo square DIN 557 yam tsis muaj qhov pom.
4. Lub square xov txiv ntseej yog zoo tagnrho rau siv nyob rau hauv nruj qhov chaw.
5. Qhov loj dua qhov chaw ntawm DIN 557 square txiv ntoo tso cai rau lawv kom yooj yim dua los tiv thaiv loosening.

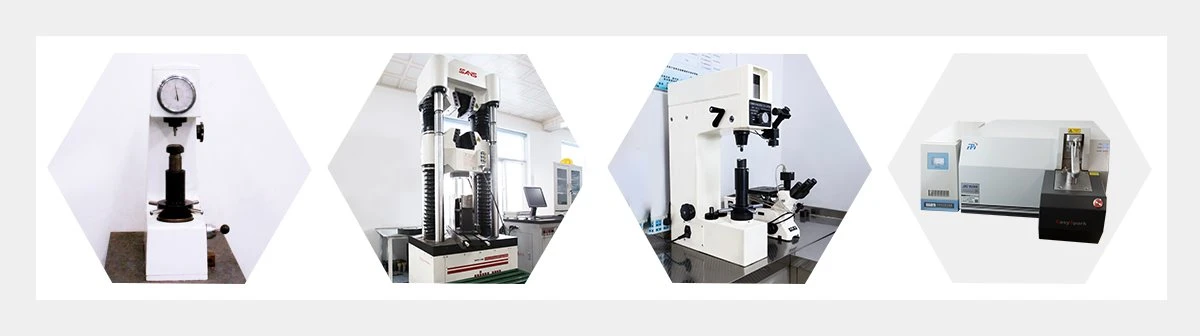

Kev soj ntsuam zoo
AYA muaj lub chaw soj ntsuam zoo tshaj plaws rau QC ntawm cov khoom siv raw thiab cov khoom tiav tiav. Peb cov khoom yog tsim nruj me ntsis raws li cov kev cai ntawm cov neeg siv khoom thiab kev lag luam. Tag nrho cov ntsiab lus tseem ceeb yog optimized los tsim cov txheej txheem ntau lawm.

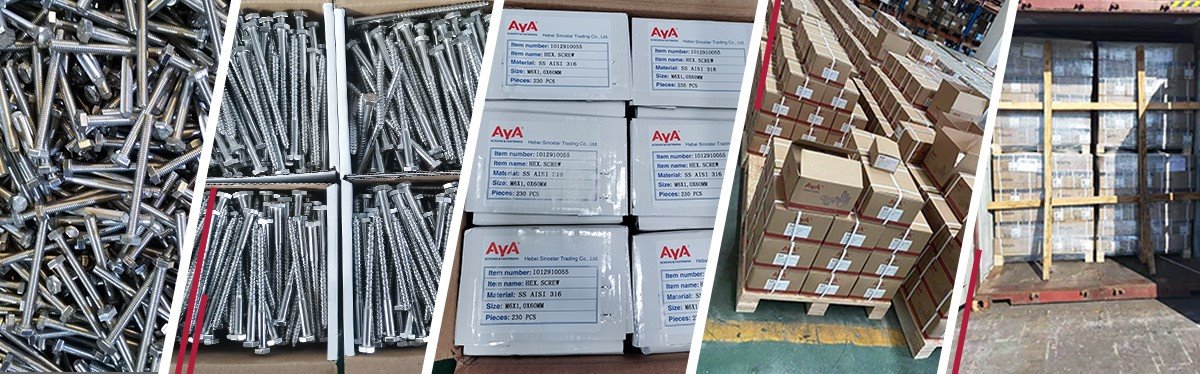

Ntim & Thawv Loading
AYA yeej ib txwm txuas qhov tseem ceeb rau R & D ntawm lub ntim los txhim kho qhov zoo li qub thiab ruaj khov hauv cov txheej txheem xa khoom.
Kev siv Scenarios
Vim li cas thiaj xaiv AYA?
AYA muab cov kev pabcuam tshwjxeeb rau 1000 ntxiv rau cov tswvcuab los ntawm thoob plaws lub ntiaj teb txhua xyoo, nrog rau kev pabcuam kev pabcuam tshwjxeeb, koj tsuas yog yuav tsum nyem tus nas kom tau txais kev pabcuam tshwjxeeb thiab txaus siab rau cov kev pabcuam hauv qhov rooj.
Cim npe nrov: square taub hau txiv ntseej, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, kev muag, ua nyob rau hauv Suav teb
